Rod Ends Bearings

SI12E¹)
Request Quote
PDF
  • Rod Ends Bearings
  • Rod Ends Bearings

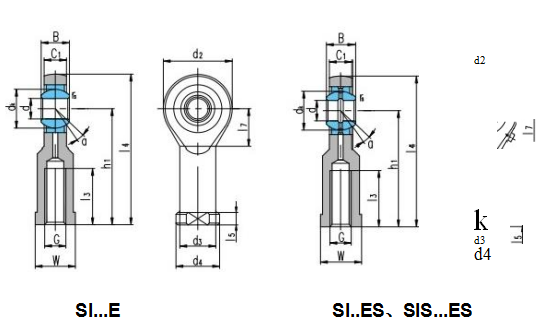

Dimension and Parameters

Bearing number :SI12E¹)
Dimensions
d :12
B :10
dk :18
C₁ max :8.50
d₂ :34
G 6H :M12
h₁ :50
I₃ min :23
4 :67
I5 :7
I₇ :18
W :18
d₃ :19
d₄ :22
rs min :0.30
α ≈ :10
Load Ratings/kN
Dynamic :10
Static :24.50
Weight/kg :0.11
