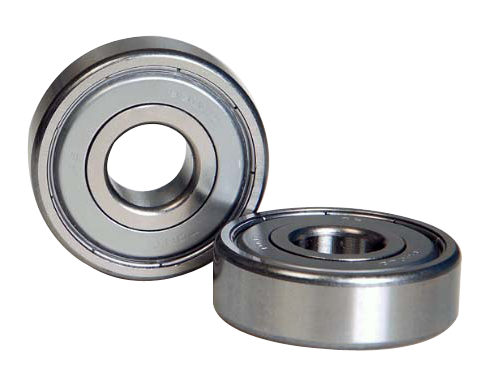

Inch Deep Groove Ball bearings 16 Series

Live Chat Send Inquiry

Product description Top

Inquiry	Bearing Number	Dimensions			Basic Load Rating
Inquiry	Bearing Number	d	D	B	Cr(N)	Cor(N)
	1601	4.763 mm	17.463 mm	6.35 mm	600	220
	1601 2rs	4.763 mm	17.463 mm	7.938 mm	600	220
	1601zz	4.763 mm	17.463 mm	6.35 mm	600	220
	1602	6.35 mm	17.463 mm	6.35 mm	635	240
	1602 2rs	6.35 mm	17.463 mm	7.938 mm	635	240
	1602zz	6.35 mm	17.463 mm	6.35 mm	635	240
	1603	7.938 mm	22.225 mm	7.142 mm	745	310
	1603 2rs	7.938 mm	22.225 mm	8.733 mm	745	310
	1603zz	7.938 mm	22.225 mm	7.142 mm	745	310
	1604	9.525 mm	22.225 mm	7.142 mm	750	320
	1604 2rs	9.525 mm	22.225 mm	8.733 mm	750	320
	1604zz	9.525 mm	22.225 mm	7.142 mm	750	320
	1605	7.938 mm	23.017 mm	7.938 mm	745	315
	1605 2rs	7.938 mm	23.017 mm	7.938 mm	745	315
	1605zz	7.938 mm	23.017 mm	7.938 mm	745	315
	1606	9.525 mm	23.017 mm	7.938 mm	750	320
	1606 2rs	9.525 mm	23.017 mm	7.938 mm	750	320
	1606zz	9.525 mm	23.017 mm	7.938 mm	750	320
	1607	11.113 mm	23.017 mm	7.938 mm	1015	430
	1607 2rs	11.113 mm	23.017 mm	7.938 mm	1015	430
	1607zz	11.113 mm	23.017 mm	7.938 mm	1015	430
	1614	9.525 mm	28.575 mm	9.525 mm	1140	520
	1614 2rs	9.525 mm	28.575 mm	9.525 mm	1140	520
	1614zz	9.525 mm	28.575 mm	9.525 mm	1140	520
	1615	11.113 mm	28.575 mm	9.525 mm	1145	530
	1615 2rs	11.113 mm	28.575 mm	9.525 mm	1145	530
	1615zz	11.113 mm	28.575 mm	9.525 mm	1145	530
	1616	12.7 mm	28.575 mm	9.525 mm	1150	450
	1616 2rs	12.7 mm	28.575 mm	9.525 mm	1150	450
	1616zz	12.7 mm	28.575 mm	9.525 mm	1150	450
