GX...S Series

GX100S

Bearing number：GX…S 10～200

Sliding contact Surfaces：Steel/Steel

Design characteristics ：Bearing housing washer of carbon chromium steel, hardened,with sliding surface of PTFE fabric.Shaft washer of carbon chromium steel,hardened,sliding surface hard chromium plated.

Permissible operating temperature range ：-50℃­～+150℃
Request Quote
PDF
  • GX...S Series
  • GX...S Series

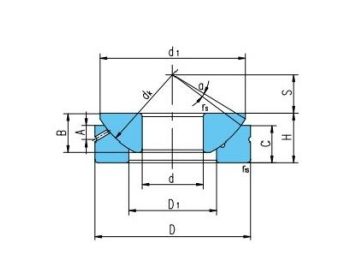

Dimension and Parameters

Bearing number :GX100S
Dimensions mm
d :100
D :210
B :51
C :46
H :59
dk :222
S :45
d₁ max :198
D₁ min :127
A :15
rs,r1s min :1.1
α ° ≈ :4
Load ratings kN
Dynamic :1300
Static :6470
Weight ≈kg :11
