GEWZ...ES-2RS Series

GEWZ69ES-2RS

Series and bore diameter range：GEWZ…ES-2RS 19.05～152.4



Sliding contact surfaces：Steel/Steel



Permissible operating temperature range：GEWZ…ES-2RS:－30℃～＋130℃


Design characteristics：GEWZ…ES-2RS:As series GEEM…ES-2RS，but with inch dimensions.
Request Quote
PDF
  • GEWZ...ES-2RS Series
  • GEWZ...ES-2RS Series

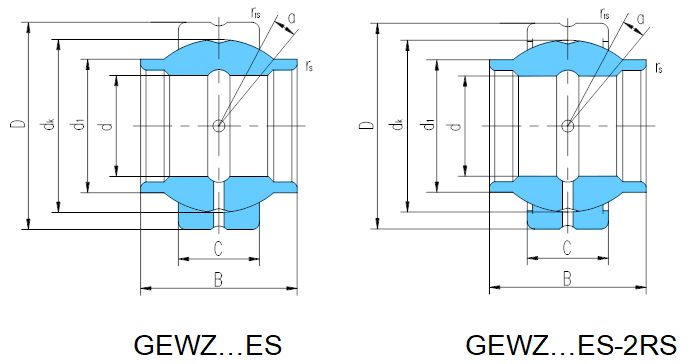

Dimension and Parameters

Bearing number :GEWZ69ES-2RS
Dimensions mm
d :69.85
D :111.125
B :104.775
C :52.375
d1 max :85.852
dk :100
rs min :1
r1s min :1
α° ≈ :5
Load ratings kN
Static :415
Dynamic :1250
Weight kg :2.9
