GE...E Series

GE...E Series

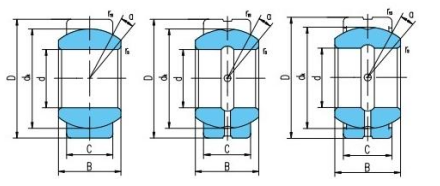

Bearing number: GE...E­ 4～12

                            GE...ES 15~300

                            GE...ES-2RS 15~300


Sliding contact surfaces:  Steel/Steel


Design characteristics :

The outer ring has an axial seam. Both the inner and outer rings are made of bearing steel, quenched and phosphated, and the sliding surface is coated with molybdenum disulfide. Except for the model with the suffix code E, all other models have lubricating oil grooves and oil holes on the inner and outer rings. The suffix code -2RS indicates that the outer ring has sealing rings at both ends.


Permissible operating temperature range : GE...E­ -50℃­～+150℃

                                                                 GE...ES  -50℃­～+150℃

                                                                 GE...ES-2RS  -30℃­～+130℃
Live Chat Send Inquiry
  • GE...E Series
  • GE...E Series
Product description Top
InquiryBearing numberDimensions mmLoad ratings kNWeight ≈kg
dDBCdkrs minr1s minα° ≈DynamicStatic
GE4E 4 12 5 3 8 0.30 0.30 16 2 10 0.00
GE5E 5 14 6 4 10 0.30 0.30 13 3.40 17 0.01
GE6E 6 14 6 4 10 0.30 0.30 13 3.40 17 0.00
GE8E 8 16 8 5 13 0.30 0.30 15 5.50 27 0.01
GE10E 10 19 9 6 16 0.30 0.30 12 8.10 40 0.01
GE12E 12 22 10 7 18 0.30 0.30 10 10 53 0.02
GE15ES GE15ES-2RS 15 26 12 9 22 0.30 0.30 8 16 84 0.03
GE17ES GE17ES-2RS 17 30 14 10 25 0.30 0.30 10 21 106 0.04
GE20ES GE20ES-2RS 20 35 16 12 29 0.30 0.30 9 30 146 0.06
GE25ES GE25ES-2RS 25 42 20 16 35.50 0.60 0.60 7 48 240 0.12
GE30ES GE30ES-2RS 30 47 22 18 40.70 0.60 0.60 6 62 310 0.15
GE35ES GE35ES-2RS 35 55 25 20 47 0.60 1 6 79 399 0.23
GE40ES GE40ES-2RS 40 62 28 22 53 0.60 1 7 99 495 0.32
GE45ES GE45ES-2RS 45 68 32 25 60 0.60 1 7 127 637 0.42
GE50ES GE50ES-2RS 50 75 35 28 66 0.60 1 6 156 780 0.56
GE55ES GE55ES-2RS 55 85 40 32 74 0.60 1 7 200 1000 0.86
GE60ES GE60ES-2RS 60 90 44 36 80 1 1 6 245 1220 1.03
GE70ES GE70ES-2RS 70 105 49 40 92 1 1 6 313 1560 1.57
GE80ES GE80ES-2RS 80 120 55 45 105 1 1 6 400 2000 2.32
GE90ES GE90ES-2RS 90 130 60 50 115 1 1 5 488 2440 2.79
GE100ES GE100ES-2RS 100 150 70 55 130 1 1 7 607 3030 4.44
GE110ES GE110ES-2RS 110 160 70 55 140 1 1 6 654 3270 4.83
GE120ES GE120ES-2RS 120 180 85 70 160 1 1 6 950 4750 8.11
GE140ES GE140ES-2RS 140 210 90 70 180 1 1 7 1070 5350 11.20
GE160ES GE160ES-2RS 160 230 105 80 200 1 1 8 1360 6800 14.10
GE180ES GE180ES-2RS 180 260 105 80 225 1.10 1.10 6 1530 7650 18.50
GE200ES GE200ES-2RS 200 290 130 100 250 1.10 1.10 7 2120 10600 28.40
GE220ES GE220ES-2RS 220 320 135 100 275 1.10 1.10 8 2320 11600 35.70
GE240ES GE240ES-2RS 240 340 140 100 300 1.10 1.10 8 2550 12700 39.70
GE260ES GE260ES-2RS 260 370 150 110 325 1.10 1.10 7 3030 15190 51.50
