GAC...T Series

GAC65T

Bearing number：GAC…T 25～200

Sliding contact Surfaces：Steel/PTFE fabric

Design characteristics ：Outer rings of carbon chromium steel,hardened,with sliding surface of PTFE fabric;Inner ring of carbon chromium steel,hardened,sliding surface hard

chromium plated.

Permissible operating temperature range ：－50℃～＋150℃
Request Quote
PDF
  • GAC...T Series
  • GAC...T Series

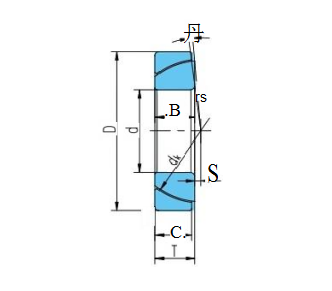

Dimension and Parameters

Bearing number :GAC65T
Dimensions mm
d :65
D :100
B :23
C :22
T :23
dk :93.5
S :6.5
rs,r1s min :1.1
α° ≈ :1
Load ratings kN
Dynamic :495
Static :825
Weight ≈kg :0.759
